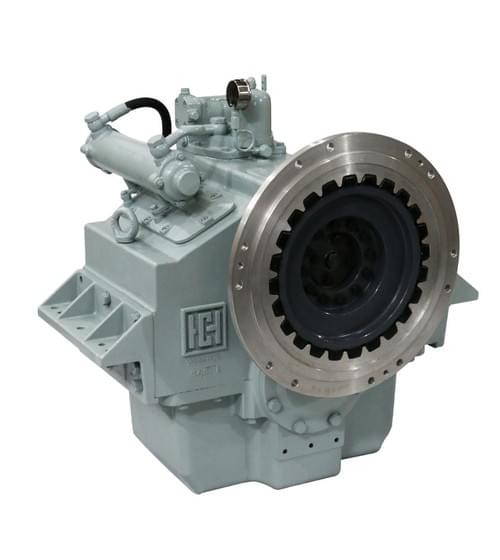

ADVANCE GEARBOX 135A
advance-gearbox-135a
More Details
ADVANCE 135A - 3,62:1
MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-135A-3,62 |
| Brand | Advance |
| Model | 135A |
| Ratio | 3,62:1 |
| Power | 241,2 HP @ 1800 RPM |
| Max. Power | 268 HP @ 2000 RPM |
| RPM Range | 1000-2000 |
| Rated propeller thrust | 29,4 kn |
| N/n | 0,134 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Not available |
| Coupling size | 14 inch |
| Coupling type | Rubber block drive, with alu. ring |
DIMENSIONS
| Vertical offset | 225 mm |
| LxWxH | 578x744x830 mm |
| Net. weight | 470 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 2,03:1 | 2,59:1 | 3,04:1 | 3,62:1 | 4,11:1 | 4,65:1 | 5,06:1 | 5,47:1 | 5,81:1 |
| Rate | 0,134 hp/rpm | 0,125 hp/rpm | 0,118 hp/rpm | 0,103 hp/rpm | 0,094 hp/rpm | ||||
