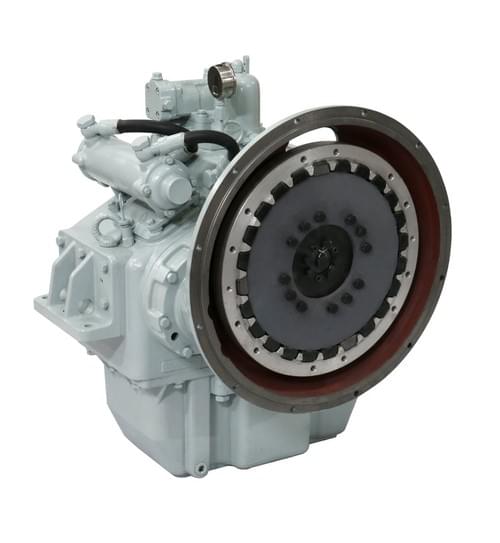

ADVACNE GEARBOX 300
advance-gearbox-300
More Details
ADVANCE 300 - 3,00:1
MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-300-3,00 |
| Brand | Advance |
| Model | 300 |
| Ratio | 3:1 |
| Power | 594 HP @ 1800 RPM |
| Max. Power | 825 HP @ 2500 RPM |
| RPM Range | 1000-2500 |
| Rated propeller thrust | 50 kn |
| N/n | 0,33 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-0/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Available |
| Note | If using flexible couping, rate will rise 8% |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 264 mm |
| LxWxH | 638x870x864 mm |
| Net. weight | 740 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 1,87:1 | 2,04:1 | 2,54:1 | 3:1 | 3,53:1 | 4,1:1 | 4,47:1 | 4,61:1 | 4,94:1 | 5,44:1 |
| Rate | 0,35 hp/rpm | 0,33 hp/rpm | 0,30 hp/rpm | 0,25 hp/rpm | 0,20 hp/rpm | 0,17 hp/rpm | ||||
Data Sheet 300C-ADVANCE Marine GEARBOX Please login to download
