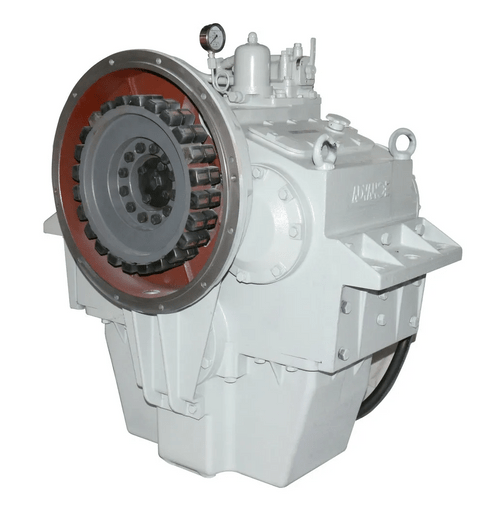

ADVANCE GEARBOX D300A

Go Back

ADVANCE GEARBOX D300A

advance-gearbox-d300a

More Details


ADVANCE D300A - 4:1MEDIUM/HEAVY DUTY GEARBOXReference numberA-D300A-4
BrandAdvance
ModelD300A
Ratio4:1
Power630 HP @ 1800 RPM
Max. Power805 HP @ 2300 RPM
RPM Range1000-2300
StatusFor sale
Rated propeller thrust60 kn
N/n0,35 hp/rpm
FEATURES & OPTIONSSae housingWithout/sae-0/sae-1
ControlsMechanical/ electrical
PtoAvailable
NoteIf using flexible couping, rate will rise 8%
Coupling size18 /16 /14 inch
Coupling typeRubber block drive, with alu. ring/(high) flexible coupling
DIMENSIONSVertical offset355 mm
LxWxH786x920x1040 mm
Net. weight940 kg
AVAILABLE ARRANGEMENTSRatio4,48:14:15,05:15,52:15,9:16,56:17,06:17,63:1
Rate0,33 hp/rpm0,35 hp/rpm0,30 hp/rpm0,25 hp/rpm0,20 hp/rpm0,17 hp/rpm
Data Sheet D300C-ADVANCE Marine GEARBOX Please login to download


ADVANCE GEARBOX D300A

ADVANCE D300A - 4:1

MEDIUM/HEAVY DUTY GEARBOX

FEATURES & OPTIONS

DIMENSIONS

AVAILABLE ARRANGEMENTS

Our brand

Company news

Reference number	A-D300A-4
Brand	Advance
Model	D300A
Ratio	4:1
Power	630 HP @ 1800 RPM
Max. Power	805 HP @ 2300 RPM
RPM Range	1000-2300
Status	For sale
Rated propeller thrust	60 kn
N/n	0,35 hp/rpm

Sae housing	Without/sae-0/sae-1
Controls	Mechanical/ electrical
Pto	Available
Note	If using flexible couping, rate will rise 8%
Coupling size	18 /16 /14 inch
Coupling type	Rubber block drive, with alu. ring/(high) flexible coupling

Ratio	4,48:1	4:1	5,05:1	5,52:1	5,9:1	6,56:1	7,06:1	7,63:1
Rate	0,33 hp/rpm	0,35 hp/rpm	0,30 hp/rpm	0,25 hp/rpm		0,20 hp/rpm		0,17 hp/rpm

Vertical offset	355 mm
LxWxH	786x920x1040 mm
Net. weight	940 kg
