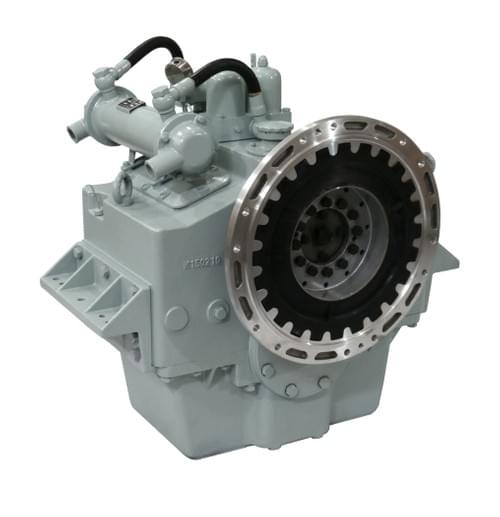

ADVANCE GEARBOX HC400
advance-gearbox-hc400
More Details
ADVANCE HC400 - 4,06:1
MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-HC400-4,06 |
| Brand | Advance |
| Model | HC400 |
| Ratio | 4,06:1 |
| Power | 684 HP @ 1800 RPM |
| Max. Power | 684 HP @ 1800 RPM |
| RPM Range | 1000-1800 |
| Rated propeller thrust | 82 kn |
| N/n | 0,38 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-0/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Not available |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 264 mm |
| LxWxH | 843x950x890 mm |
| Net. weight | 820 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 1,5:1 | 1,77:1 | 2,04:1 | 2,5:1 | 3,25:1 | 3,38:1 | 3,42:1 | 3:1 | 4,06:1 | 4,61:1 | 4,94:1 |
| Rate | 0,45 hp/rpm | 0,38 hp/rpm | 0,25 hp/rpm | ||||||||
Data Sheet HC400-ADVANCE Marine GEARBOX Please login to download
