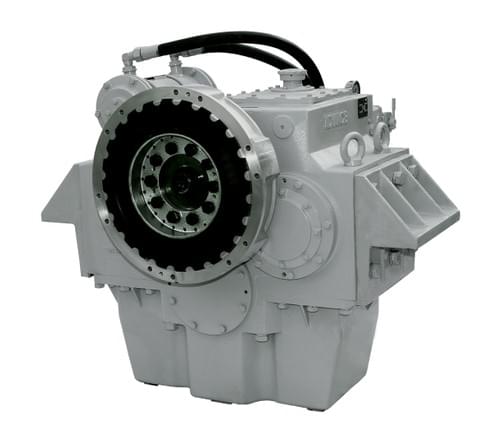

ADVANCE GEARBOX HC600A
advance-gearbox-hc600a
More Details
ADVANCE HC600A - 2,48:1
MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-HC600A-2,48 |
| Brand | Advance |
| Model | HC600A |
| Ratio | 2,48:1 |
| Power | 1080 HP @ 1800 RPM |
| Max. Power | 1260 HP @ 2100 RPM |
| RPM Range | 1000-2100 |
| Status | For sale |
| Rated propeller thrust | 90 kn |
| N/n | 0,60 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-00 |
| Pto | Not available |
| Coupling size | 21 /18 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 320 mm |
| LxWxH | 745x1094x1126 mm |
| Net. weight | 1300 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 2,48:1 | 2,66:1 | 2,78:1 | 2:1 | 3,58:1 | 3,89:1 | 3:1 |
| Rate | 0,60 hp/rpm | 0,54 hp/rpm | 0,49 hp/rpm | ||||
Data Sheet HC600-ADVANCE Marine GEARBOX Please login to download
