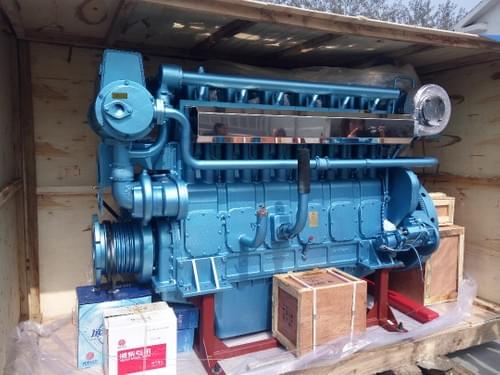

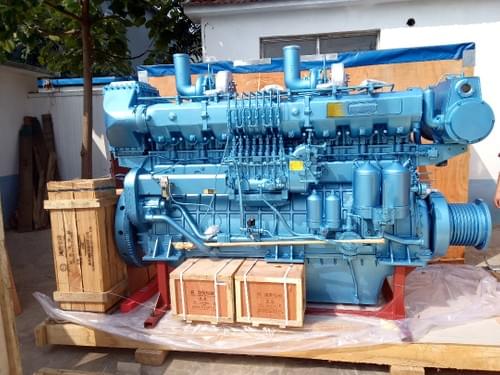

Weichai 8170 series marine diesel engine (601-735kW)
8170ZC600-1 441/600 1000
8170ZC720-2 530/720 1200
8170ZC818-3 601/818 1350
8170ZC900-3 661/900 1350
8170ZC900-5 661/900 15000
8170ZC1000-5 735/1000 1500
8170ZC720-2 530/720 1200
8170ZC818-3 601/818 1350
8170ZC900-3 661/900 1350
8170ZC900-5 661/900 15000
8170ZC1000-5 735/1000 1500
More Details
Parameters Table
| Type | Four-stroke, water cooled, in-line, turbocharged and intercooled | Number of cylinders | 6/8 |
| Cylinder Bore/stroke | 170×200（mm） | Displacement | 27.24L/36.32L |
| Oil consumption rate | ≤0.5g/kW·h | Noise | ≤105dB（A） |
| Minimum fuel consumption rate | 197g/kW·h | Idle speed | 450-650r/min |
| Torque reserve | 20-34% | Rotation direction of crankshaft (facing the flywheel end) | Counter-clockwise |
| Dimensions Length × Width × Height/net weight | 6cylinders 2463×1200×1650（mm） 3100kg 8cylinders 2650×1040×1818（mm） 3800kg | ||
Model Portfolio Table
| Series | Model | Air intake mode | Rated power kW/Ps | Speed r/min | Fuel feeding mode | Emission level | Power classification |
| X6170 | X6170ZC350-1 | Turbocharged and intercooled | 258/350 | 1000 | Mechanical pump | IMOⅡ | P1 |
| X6170ZC408-1 | Turbocharged and intercooled | 300/408 | 1000 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC450-1 | Turbocharged and intercooled | 330/450 | 1000 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC480-2 | Turbocharged and intercooled | 353/480 | 1200 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC540-2 | Turbocharged and intercooled | 397/540 | 1200 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC620-2 | Turbocharged and intercooled | 456/620 | 1200 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC650-2 | Turbocharged and intercooled | 478/650 | 1200 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC580-3 | Turbocharged and intercooled | 426/580 | 1350 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC680-3 | Turbocharged and intercooled | 500/680 | 1350 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC620-5 | Turbocharged and intercooled | 456/620 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC550-5 | Turbocharged and intercooled | 404/550 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC756-5 | Turbocharged and intercooled | 556/756 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| X6170ZC818-5 | Turbocharged and intercooled | 601/818 | 1500 | Mechanical pump | IMOⅡ | P1 | |
| 8170 | 8170ZC600-1 | Turbocharged and intercooled | 441/600 | 1000 | Mechanical pump | IMOⅡ | P1 |
| 8170ZC720-2 | Turbocharged and intercooled | 530/720 | 1200 | Mechanical pump | IMOⅡ | P1 | |
| 8170ZC818-3 | Turbocharged and intercooled | 601/818 | 1350 | Mechanical pump | IMOⅡ | P1 | |
| 8170ZC900-3 | Turbocharged and intercooled | 661/900 | 1350 | Mechanical pump | IMOⅡ | P1 | |
| 8170ZC900-5 | Turbocharged and intercooled | 661/900 | 15000 | Mechanical pump | IMOⅡ | P1 | |
| 8170ZC1000-5 | Turbocharged and intercooled | 735/1000 | 1500 | Mechanical pump | IMOⅡ | P1 |
Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.
Product description
Safe and reliable
- High strength engine block, crankshaft and connecting rod ensure that the overhaul period of diesel engine is not less than 20000h
- The high-flow lubrication system with filtering before cooling and the high-efficiency cooling system are modularized and designed with one block and one head, which ensure the reliability of diesel engine parts and the convenience of use and maintenance
Strong power
- The shapes of high-pressure oil pump, turbocharger, injector, air valve and combustion chamber are reasonably and optimally matched, with wide power coverage and large torque reserve (more than 30%), which makes its power performance index rank at a leading position among similar products
Economical and fuel-efficient
- The engines are featured by four-valve technology, pulse conversion turbocharger, large intake air volume, sufficient combustion, wide economic operation range, and the lowest fuel consumption rate can reach 197g/kW•h
Comfortable and environmentally friendly
- The design of key components is strengthened, so that the vibration index of the products reaches Grade A of the 11 grades, and the noise index is 5dB lower than that of similar products, reaching the leading level of the world
Strong practicability
- The unique Yuanhangbao monitoring system can monitor the speed, water temperature, oil temperature, oil pressure and other parameters of a diesel engine in real time. When the parameters of the diesel engine exceed the limit, it can automatically alarm and stop the engine, and the addition of stormy wave mode ensures that the ship engine will not stop at critical moments such as stormy wave
