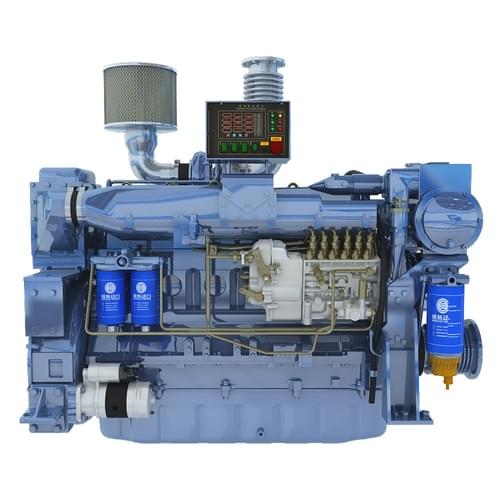

Weichai WD10 series marine diesel engine (140-240kW)

Weichai WD10 series marine diesel engine (140-240kW)

Model Rated power kW/Ps  Speed r/min
WD10C190-15 140/190 1500
WD10C200-21 147/200 2100
WD10C218-15 160/218 1500
WD10C240-15 176/240 1500
WD10C240-18 176/240 1800
WD10C278-15 205/278 1500
WD10C278-18 205/278 1800
WD10C278-21 205/278 2100
WD10C300-21 220/300 2100
WD10C312-18 230/312 1800
WD10C326-21 240/326 2100
More Details

Parameters Table

TypeFour-stroke, water cooled, in-line, turbocharged/turbocharged and intercooledNumber of cylinders6
Cylinder Bore/stroke126×130(mm)Displacement9.726L
Oil consumption rate≤0.6g/kW·hNoise≤99dB（A）
Minimum fuel consumption rate195g/kW·hIdle speed600±50r/min
Torque reserve20-35%Rotation direction of crankshaft
(facing the flywheel end)		Counter-clockwise

Dimensions
Length × Width × Height/net weight

Turbocharged 1499×814×1164（mm） 1018kg
Turbocharged and intercooled, dry-type exhaust pipe 1447×960×1211（mm） 1056kg
Turbocharged and intercooled, water jacket exhaust pipe 1452×814×1418（mm） 1056kg

Model Portfolio Table

SeriesModelAir intake modeRated power kW/Ps

Speed r/min

Fuel feeding modeEmission levelPower classification
WD10WD10C190-15Turbocharged and intercooled140/1901500Mechanical pumpIMOⅡP1
WD10C200-21Turbocharged147/2002100Mechanical pumpIMOⅡP1
WD10C218-15Turbocharged and intercooled160/2181500Mechanical pumpIMOⅡP1
WD10C240-15Turbocharged and intercooled176/2401500Mechanical pumpIMOⅡP1
WD10C240-18Turbocharged and intercooled176/2401800Mechanical pumpIMOⅡP1
WD10C278-15Turbocharged and intercooled205/2781500Mechanical pumpIMOⅡP1
WD10C278-18Turbocharged and intercooled205/2781800Mechanical pumpIMOⅡP1
WD10C278-21Turbocharged and intercooled205/2782100Mechanical pumpIMOⅡP1
WD10C300-21Turbocharged and intercooled220/3002100Mechanical pumpIMOⅡP1
WD10C312-18Turbocharged and intercooled230/3121800Mechanical pumpIMOⅡP1
WD10C326-21Turbocharged and intercooled240/3262100Mechanical pumpIMOⅡP1

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product description

　　Safe and reliable

  • The frame type main bearing structure; high rigidity; high safety performance index
  • The internal and external double-circulation water cooling method is adopted, and the water jacket exhaust pipe can be selected, so as to prolong the service life of the diesel engine, and the overhaul period is 20000h

　　Strong power

  • Large power reserve; torque reserve reaches 20%-35%
  • The configuration of high-pressure oil pump, turbocharger, and fuel injector is optimized; the acceleration of ships is quick; the navigation speed is high

　　Economical and fuel-efficient

  • The intake and fuel supply system is optimized, which broadens the economic operation range of the diesel engine
  • The fuel consumption is low under normal working conditions, and the minimum fuel consumption is 195g/kW•h

　　Comfortable and environmentally friendly

  • Strengthen the design of key components, so that the products are featured by small vibration and low noise
  • IMOⅡ ship emission standards are met

　　Strong practicability

  • LCD Internet instrument can be selected to monitor the speed, water temperature, oil temperature and pressure of diesel engine in real time, so as to achieve timely automatic alarm and stop when the parameters exceed the limit values
  • Stormy wave mode is added to ensure that the ship engine will not stop at critical moments such as stormy waves
  • There is a large amount of the products in the market, and the reserve of spare parts is sufficient, which make maintenance convenient

  • Data Sheet WD10-Weichai Marine Engine Please login to download
