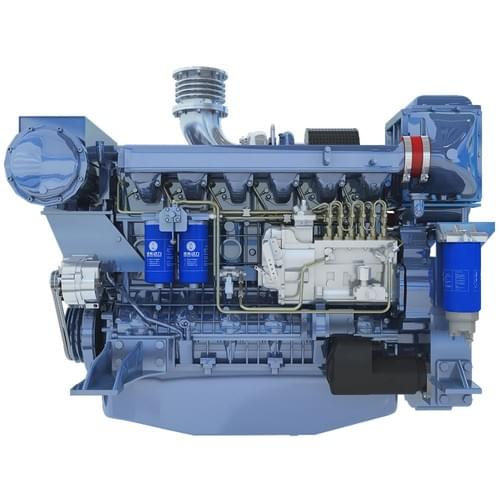

Weichai WP12 series marine diesel engine (295-405kW)
Model Rated power Speed
kW/Ps r/min
WP12C400-18 295/400 1800
WP12C450-21 330/450 2100
WP12C500-21 368/500 2100
WP12C550E212 405/550 2100
kW/Ps r/min
WP12C400-18 295/400 1800
WP12C450-21 330/450 2100
WP12C500-21 368/500 2100
WP12C550E212 405/550 2100
More Details
Parameters Table
| Type | Four-stroke, water cooled, in-line, turbocharged and intercooled | Number of cylinders | 6 |
| Cylinder Bore/stroke | 126×155(mm) | Displacement | 11.596L |
| Oil consumption rate | ≤0.5g/kW·h | Noise | ≤100dB（A） |
| Minimum fuel consumption rate | 191g/kW·h | Idle speed | 600±50r/min |
| Torque reserve | 25-35% | Rotation direction of crankshaft (facing the flywheel end) | Counter-clockwise |
| Dimensions Length × Width × Height/net weight | Mechanical pump 1695×858×1385（mm） 1200kg | ||
Model Portfolio Table
| Series | Model | Air intake mode | Rated power kW/Ps | Speed r/min | Fuel feeding mode | Emission level | Power classification |
| WP12 | WP12C400-18 | Turbocharged and intercooled | 295/400 | 1800 | Mechanical pump | IMOⅡ | P1 |
| WP12C450-21 | Turbocharged and intercooled | 330/450 | 2100 | Mechanical pump | IMOⅡ | P1 | |
| WP12C500-21 | Turbocharged and intercooled | 368/500 | 2100 | HPCR | IMOⅡ | P2 | |
| WP12C550E212 | Turbocharged and intercooled | 405/550 | 2100 | HPCR | IMOⅡ | P3 |
Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.
Product description
Safe and reliable
- The high-strength design of structural parts such as engine block, piston and bearing bush ensures the reliability of diesel engine under high explosion pressure
- For turbocharger, starter, high-pressure oil pump and other important parts, global excellent suppliers are used
- Withstand the most stringent durability test and assessment; ensure the reliability of key parts and components; and the overhaul period of the whole engine is over 20000h
- Perfect self-diagnosis system, perfect failure protection mode, and safe control strategy
Strong power
- Accurate control by electronic control units, high injection pressure, small fluctuation of rotating speed, and strong power
- Low-speed and high-torque design with the torque reserve of 25%-35%, quick response, and fast speed increase
Economical and fuel-efficient
- The fuel injection law is optimized, the fuel injection pressure, fuel injection quantity and fuel injection time are accurately controlled, the fuel is fully atomized, and the minimum fuel consumption rate is 191g/kW•h
Comfortable and environmentally friendly
- It can realize multiple injections such as pre-injection and post-injection, and the noise and vibration are reduced by 20% compared with the mechanical pump system
- Water jacket exhaust pipe and water jacket exhaust tail pipe are used to reduce engine compartment temperature
- IMOⅡ ship emission standards are met
Strong practicability
- LCD Internet instruments, vibration isolators, and hand-pressed oil well pumps can be equipped to meet the requirements of different customers
- Horizontal air filter and rear turbocharger reduce the height of the whole engine and facilitate the layout of the engine compartment
- Different control strategies are adjusted according to different performance requirements
- Receive/output various control signals, which meet the requirements of automation control
Data Sheet WP12-Weichai Marine Engine Please login to download
